PRODUCT DETAILS
Description

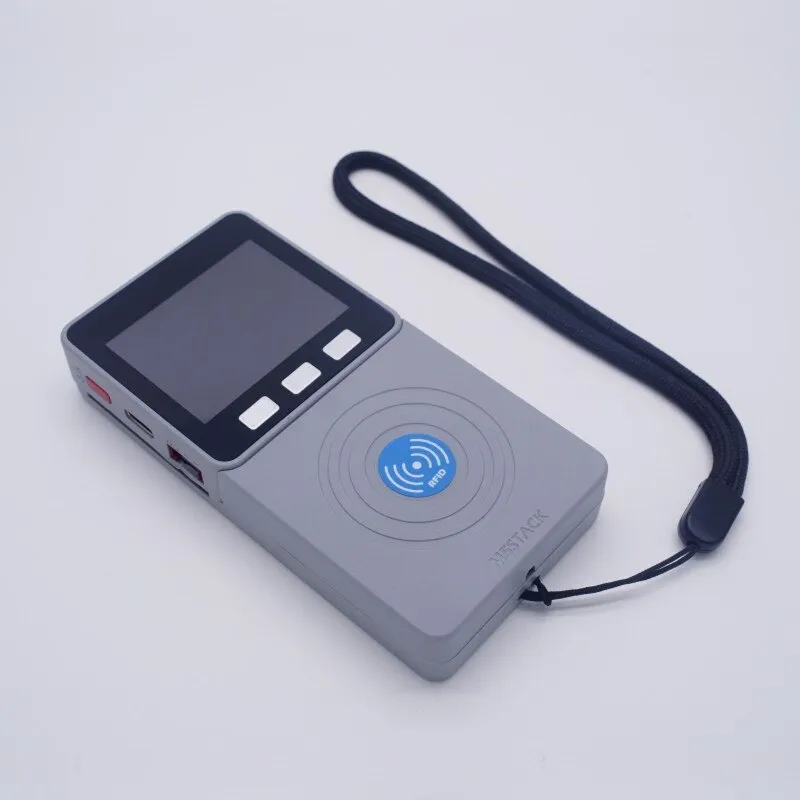

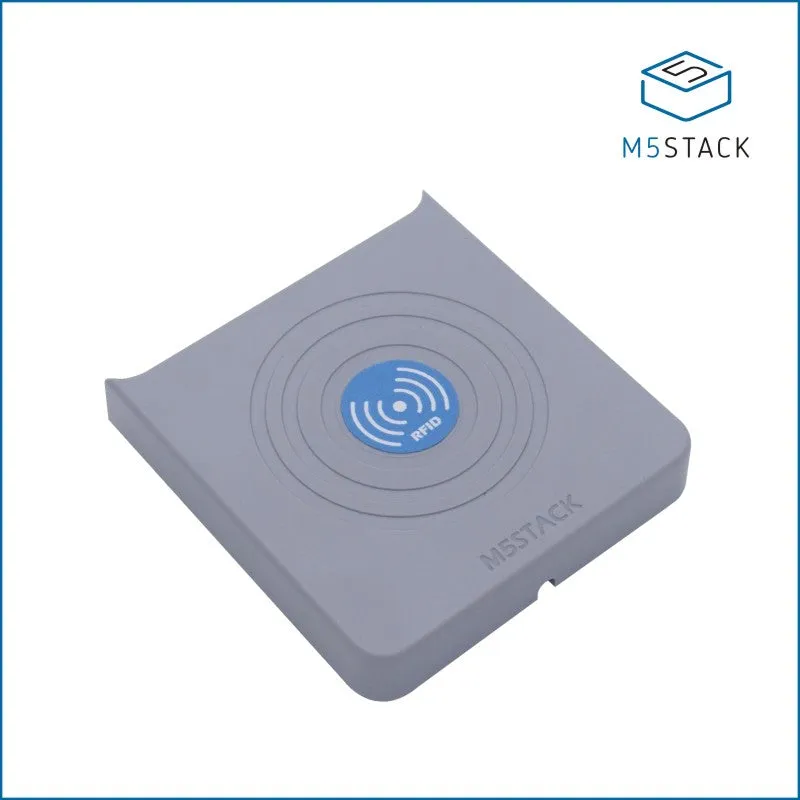

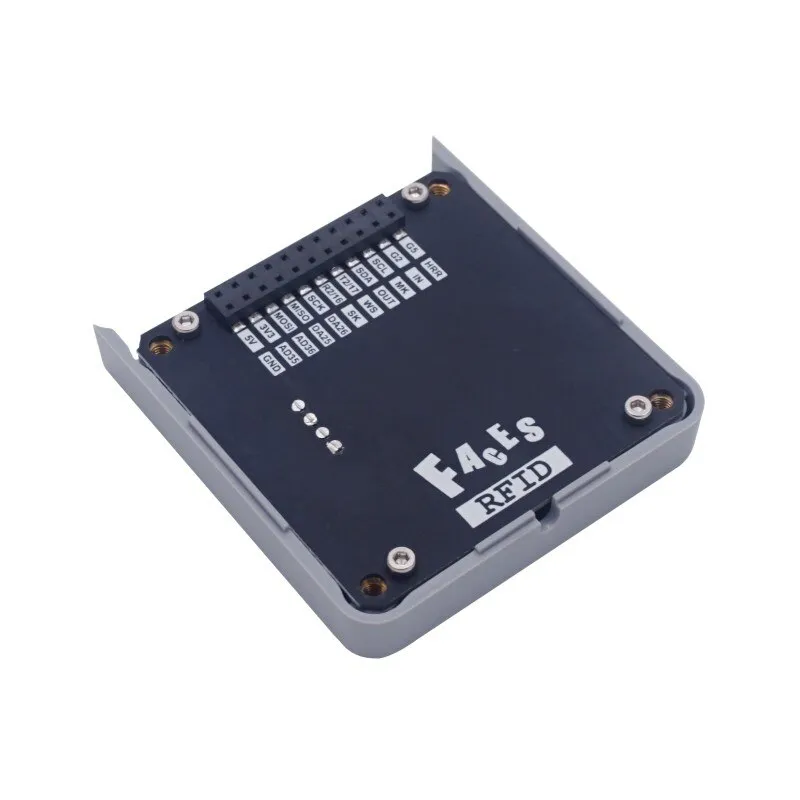

FACE-RFID is a FACES kit compatible panel, with the Radio frequency identification chipset integrated on it.
Same as RFID units, it is MFRC522-based. The MFRC522 operates in the 13.56MHz frequency band and uses the modulation and demodulation principle to interact with the proximity RF card.
This unit can realize the function of the card reading and writing device, to identify and record multiple card information, to encode and authority an RF card. With FACES panel, you can have an upgrade level of RFID device with a more complete and enclosed pattern.
Communication Protocol: I2C.
This product is EOL now.
Product Features
- FACES bottom compatible
- Interface Serial: I2C (21/22)
- MFRC522
Applications
- Reader-Tag
- Security
Include
- 1x FACES-RFID panel
- 1x RFID card
- 1x Fudan S50 card
Specification
| Resources | Parameter |
|---|---|
| Operating frequency | 13.56MHz |
| I2C data rate | Fast mode: up to 400 Kbit/s; High-speed mode: up to 3400 Kbit/s |
| Supported protocol | ISO14443A, MIFARE and NTAG |
| Data retention time | > 10 years |
| Reading and writing distance | < 20 mm |
| Net weight | 18.4g |
| Gross weight | 52g |
| Product Size | 58.2*54.2*10mm |
| Package Size | 95*65*25mm |
| Material | Plastic(PC) |
