14", 1920x1080, 60Hz, IPS, 5ms, Flicker-free, HDCP 1.4, USB C, 324.94x208.03x11.2mm
Extend your vision. Free your world.
ASUS ZenScreen™ MB14AC is designed to keep you productive, wherever you are. It‘s the portable monitor with a hybrid USB-C signal solution(DP Alt mode USB 3.0), which means that it only needs a single USB-C cable for both power and video transmission. With a slim 9mm profile, and weighing just 0.59kg, ZenScreen MB14AC is also a compact 14-inch companion monitor to meet different needs for laptop users.
Hybrid-signal solution: USB Type-A and Type-C support
ZenScreen™ MB14AC only requires a single USB connection for both power and video transmission from your host device. It features an innovative hybrid-signal solution with native support for USB Type-C™ (USB-C™) connections, and uses an installed driver* to support USB Type-A connectors for full compatibility. The reversible, any-way-up USB-C design enables quick, hassle-free connection to any device.
*DisplayLink driver required for hybrid-signal connections via USB Type-A. Please visit the Support site to get the download information.
Slim and stylish ultraportable design

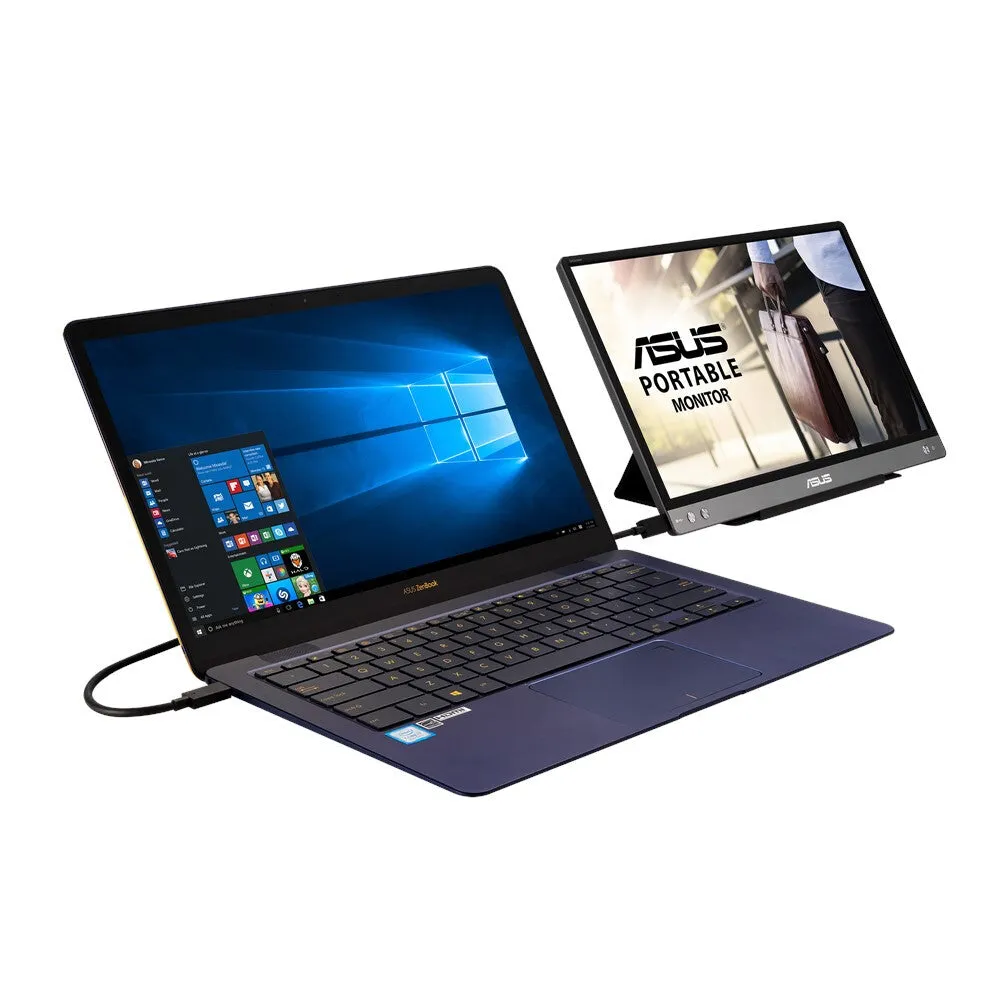

ZenScreen™ MB14AC is ideal for use as a secondary monitor for dual-monitor presentations, and its versatility helps you get things done more efficiently when you're on the go. It barely tips the scales at a lightweight 590g, and with its ultra-slim 9mm profile it fits easily in any travel bag.
Wide viewing angles
ZenScreen™ MB14AC features a Full HD panel that delivers stunning 1920 x 1080 resolution visuals with outstanding color reproduction. It uses IPS technology to give you more flexibility when extending your screen, so you still get superb color and contrast - even from extreme viewing positions.
Designed with versatility

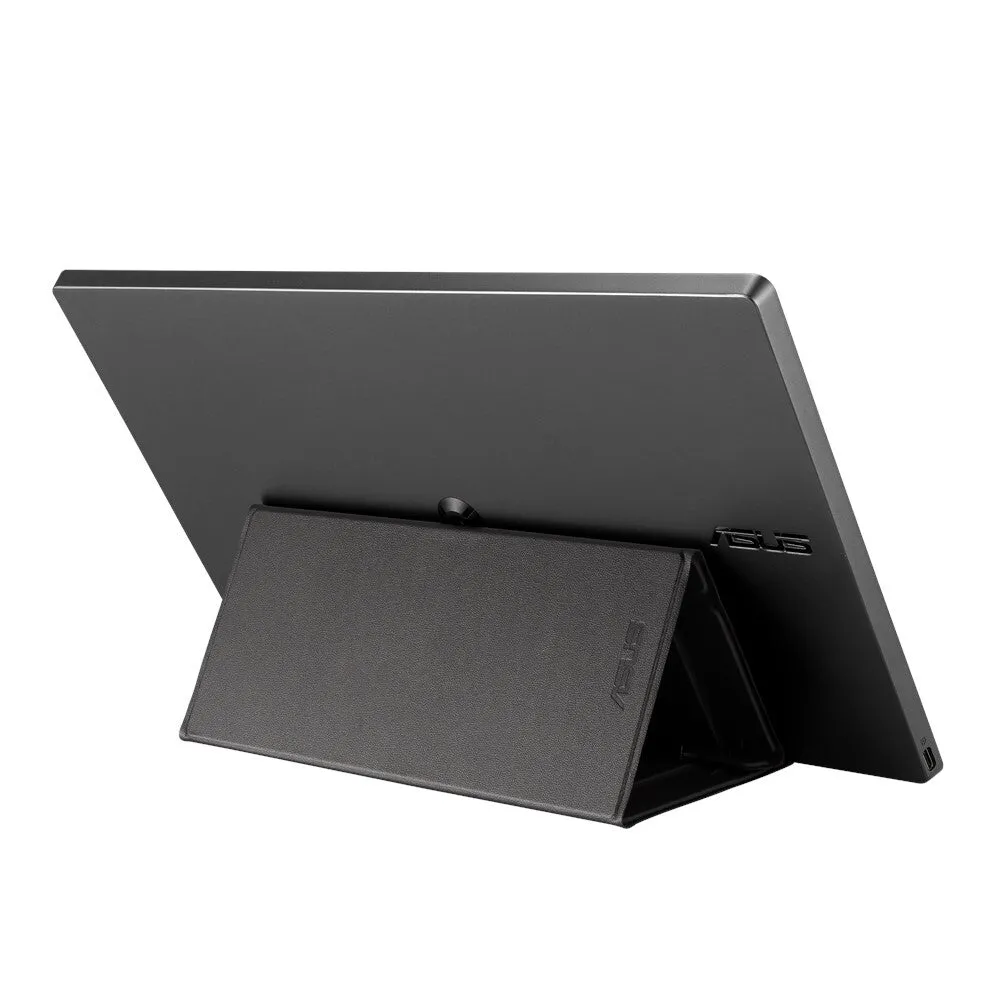

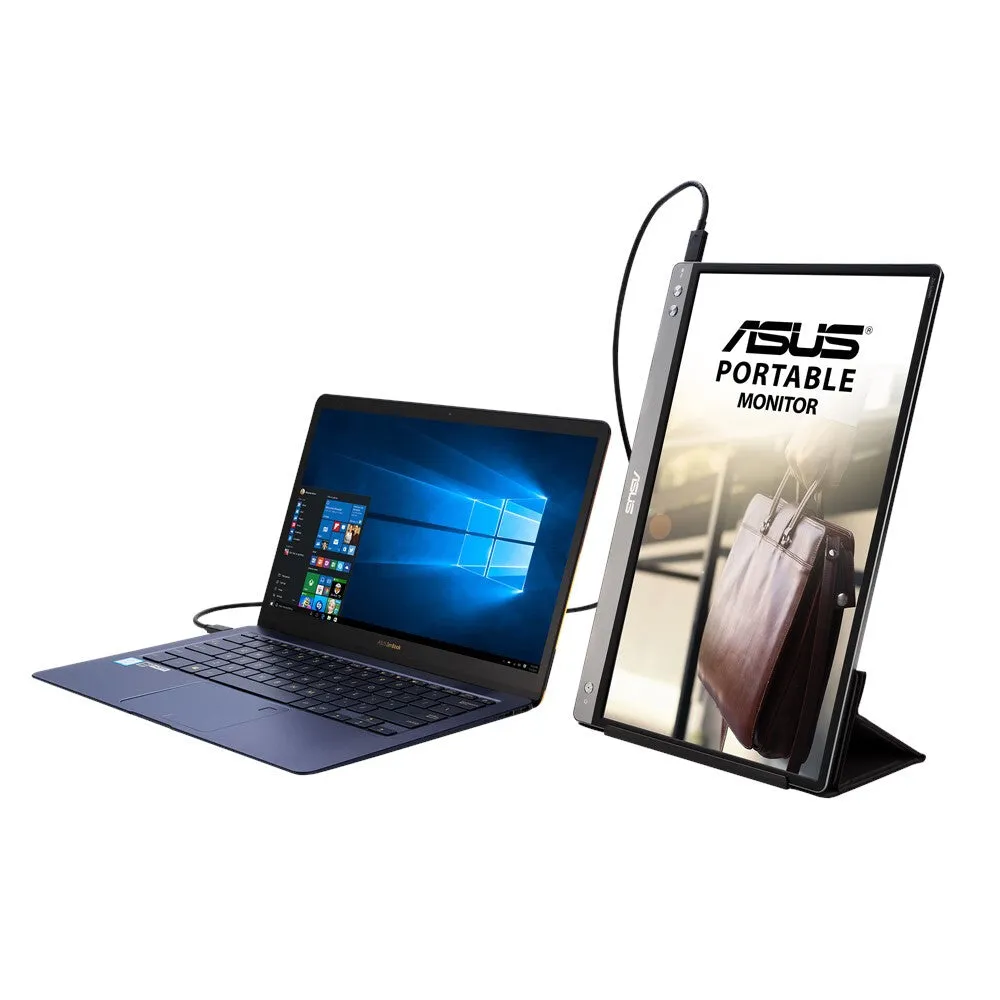

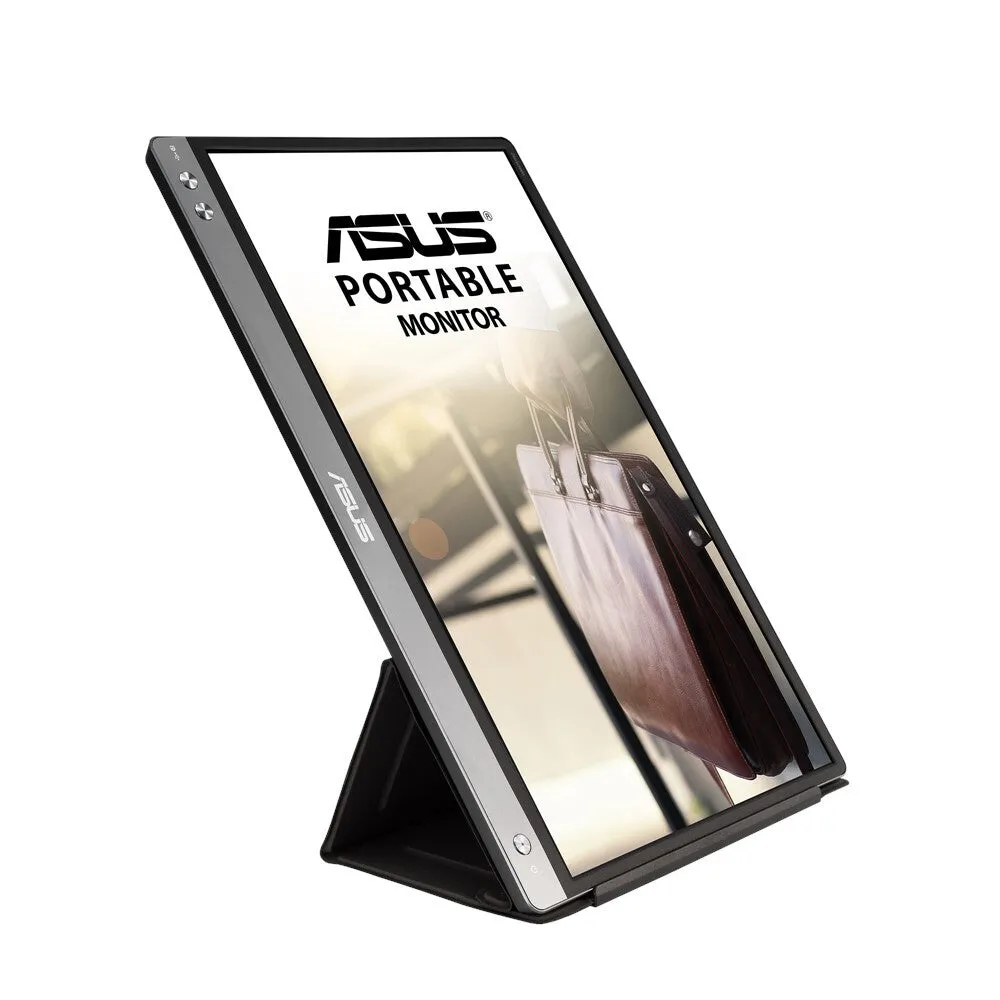

The new foldable smart case protects ZenScreen™ MB14AC from dust and scratches with lighter weight. The case can be folded into a stand to prop the monitor up in either portrait or landscape orientation. Besides, the exclusively designed mounting hole on the rear cover, which supports standard 1/4 “ screw thread, lets you assemble a conventional tripod or tabletop mounting system with ease.
Protect your eyes with ASUS Eye Care technology
ASUS blue light filter
Exclusive ASUS Ultra-Low Blue Light technology protects you from harmful blue light. It offers four blue-light filter settings that are easily accessed through the onscreen display menu via the hotkey.
ASUS Flicker-free technology
It's time to say goodbye to those tired, strained eyes. ZenScreen MB14AC features TÜV Rheinland-certified ASUS Flicker-free technology to reduce flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long, countless hours in front of a display watching favorite videos.
| Display |
|---|
| Viewable size diagonal | 35.6 cm |
| Viewable size, vertical | 17.4 cm |
| Viewable size, horizontal | 30.9 cm |
| Pixel pitch | 0.16 x 0.16 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 700:1 |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 960, 1440 x 900 (WXGA ), 1680 x 1050 (WSXGA ), 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| HD type | Full HD |
| Response time | 5 ms |
| Display brightness (typical) | 250 cd/m² |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 35.6 cm (14") |
| Performance |
|---|
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Multimedia |
|---|
| Built-in camera | No |
| Built-in speaker(s) | No |
| Design |
|---|
| Certification | BSMI, CB, CCC, CU, FCC, J-MOSS, KCC, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), TUV Flicker-free, TUV Low Blue Light, RCM |
| Product colour | Grey |
| Market positioning | Business |
| Ports & interfaces |
|---|
| HDCP | Yes |
| Headphone out | No |
| Audio input | No |
| HDMI | No |
| DVI port | No |
| Ergonomics |
|---|
| LED indicators | Yes |
| Height adjustment | No |
| Cable lock slot | No |
| VESA mounting | No |
| Power |
|---|
| Energy efficiency scale | A to G |
| Power consumption (typical) | 7 W |
| Energy consumption (SDR) per 1000 hours | 5 kWh |
| Energy efficiency class (SDR) | B |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code | 419756 |
| Weight & dimensions |
|---|
| Weight (with stand) | 590 g |
| Height (with stand) | 208 mm |
| Depth (with stand) | 11.2 mm |
| Width (with stand) | 324.9 mm |
| Packaging data |
|---|
| Package weight | 1.3 kg |
| Package height | 257 mm |
| Package depth | 77 mm |
| Package width | 392 mm |
| Cables included | USB Type-C to USB Type-C |
| Logistics data |
|---|
| Harmonized System (HS) code | 85285210 |
| Other features |
|---|
| Touchscreen | No |
